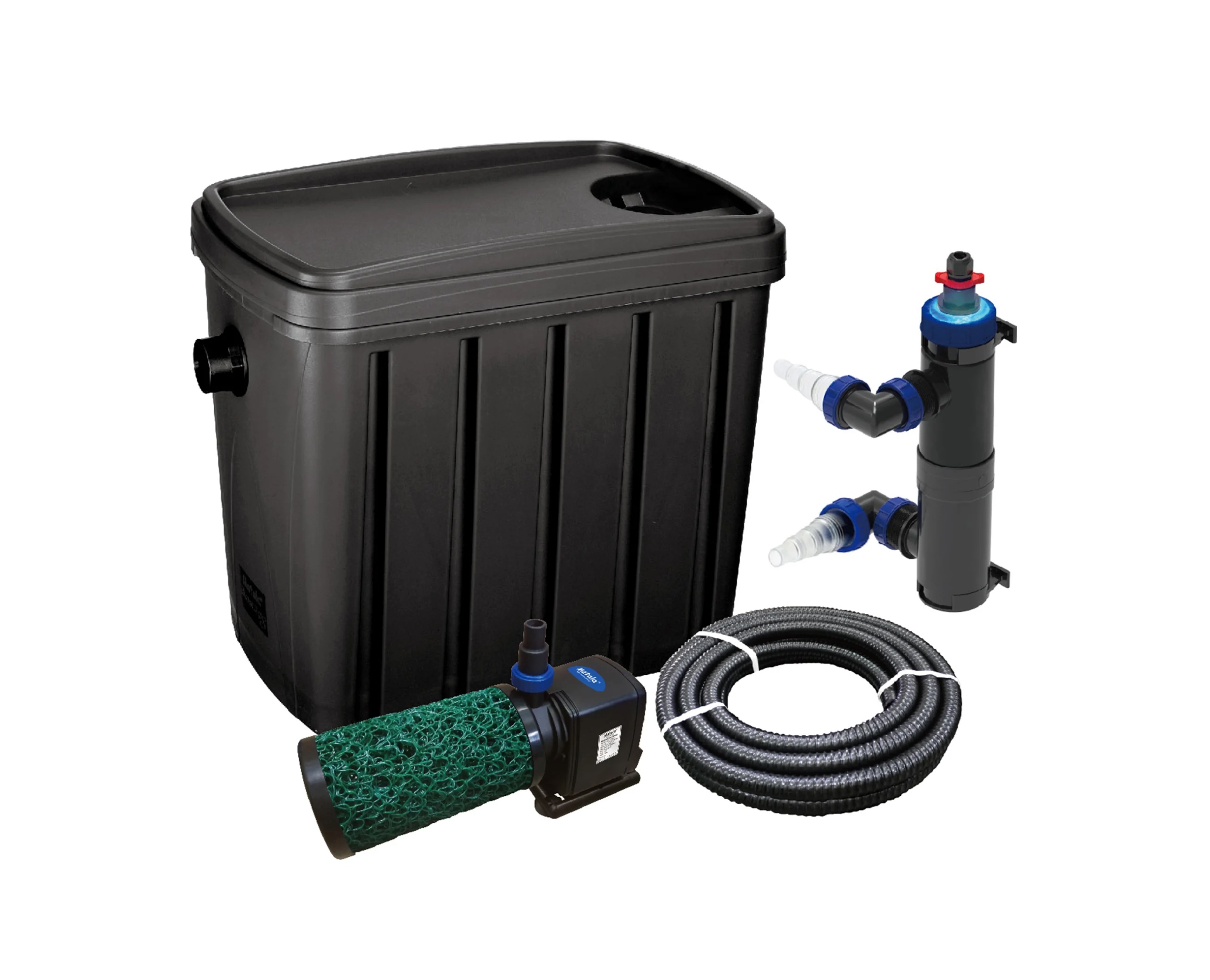

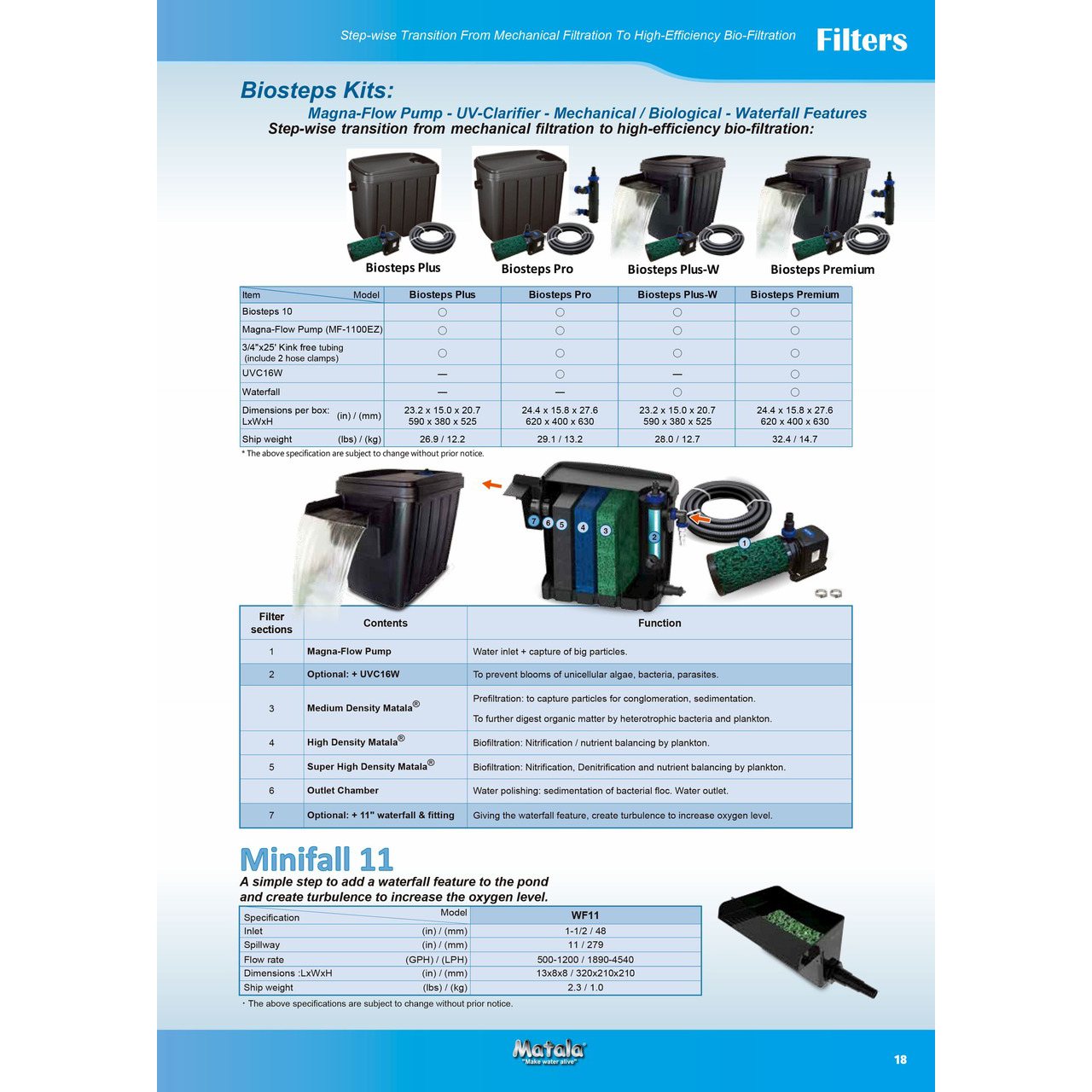

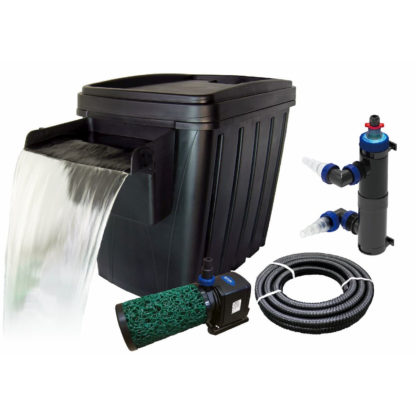

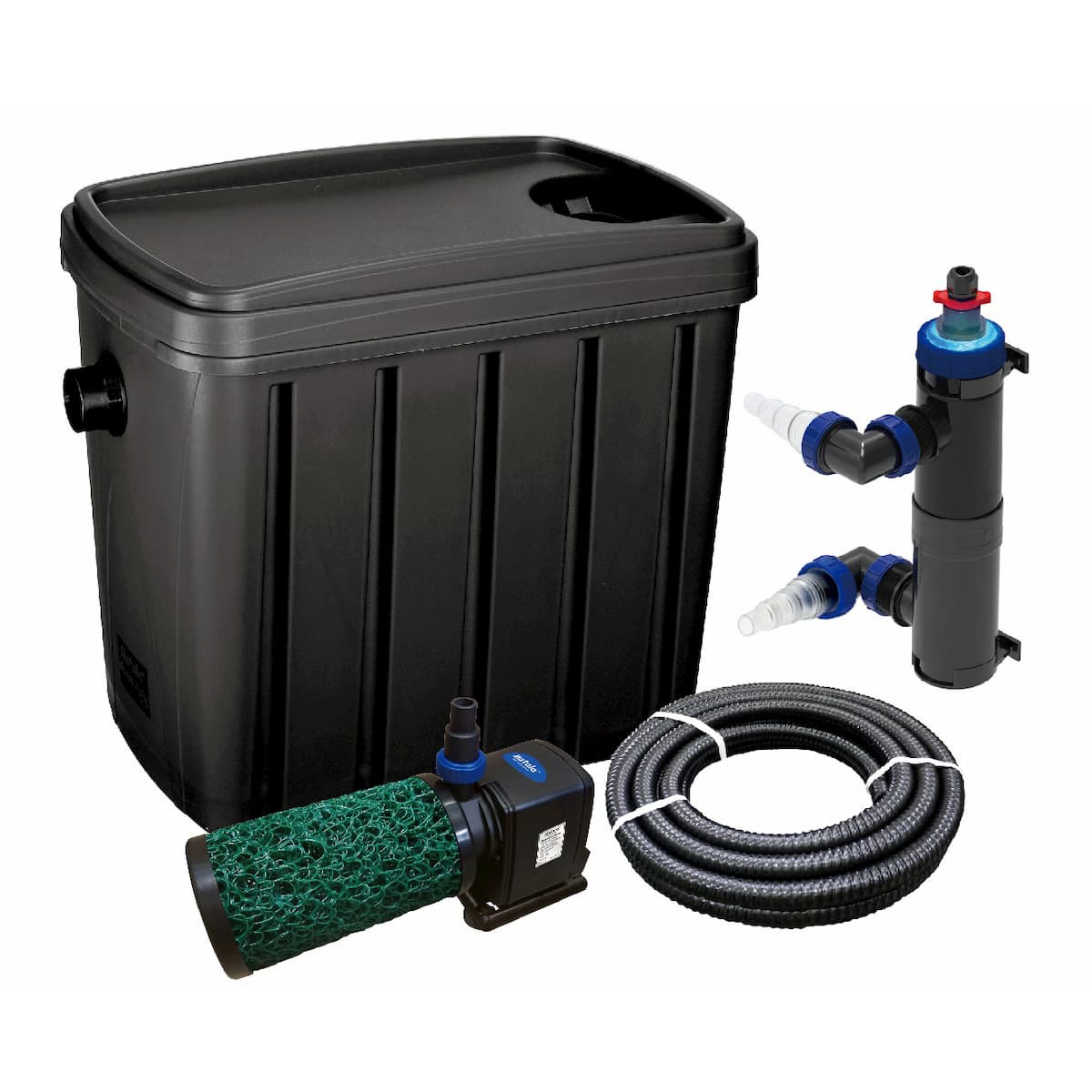

The new BioSteps Kits are available in 4 models.

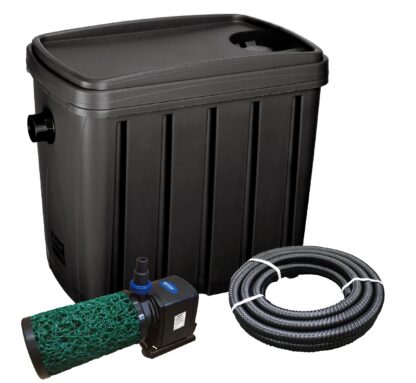

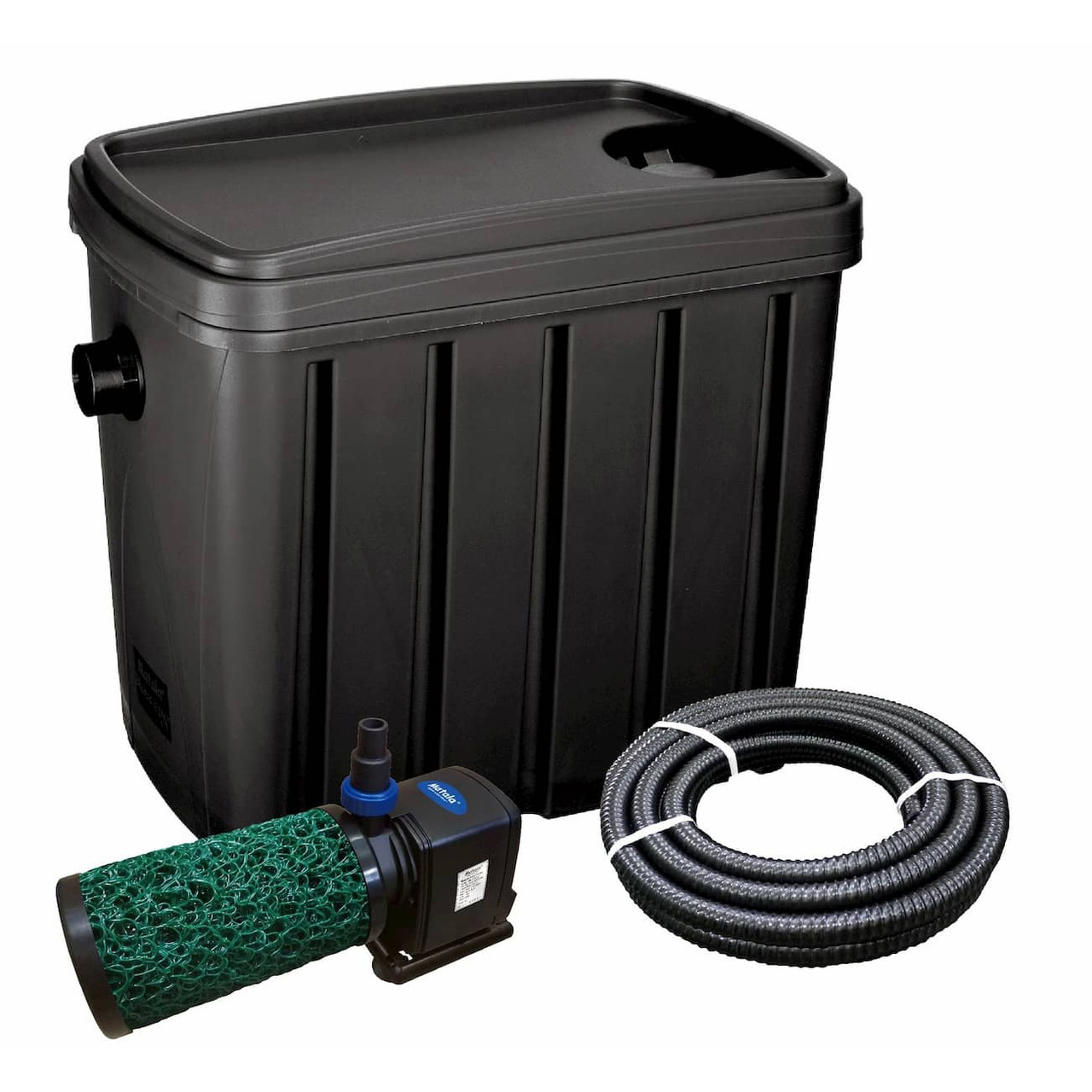

The BioSteps Plus Kit is the basic model. This basic kit comes complete with the new BioSteps filter, MF-1100EZ submersible pump, 25 ft of 3/4″ quality “kink free” hose and all connectors to make installation quick and easy!
Ideal for water garden ponds up to 2000 gallons and koi ponds up to 1000 gallons.
BioSteps Plus Kit Components:

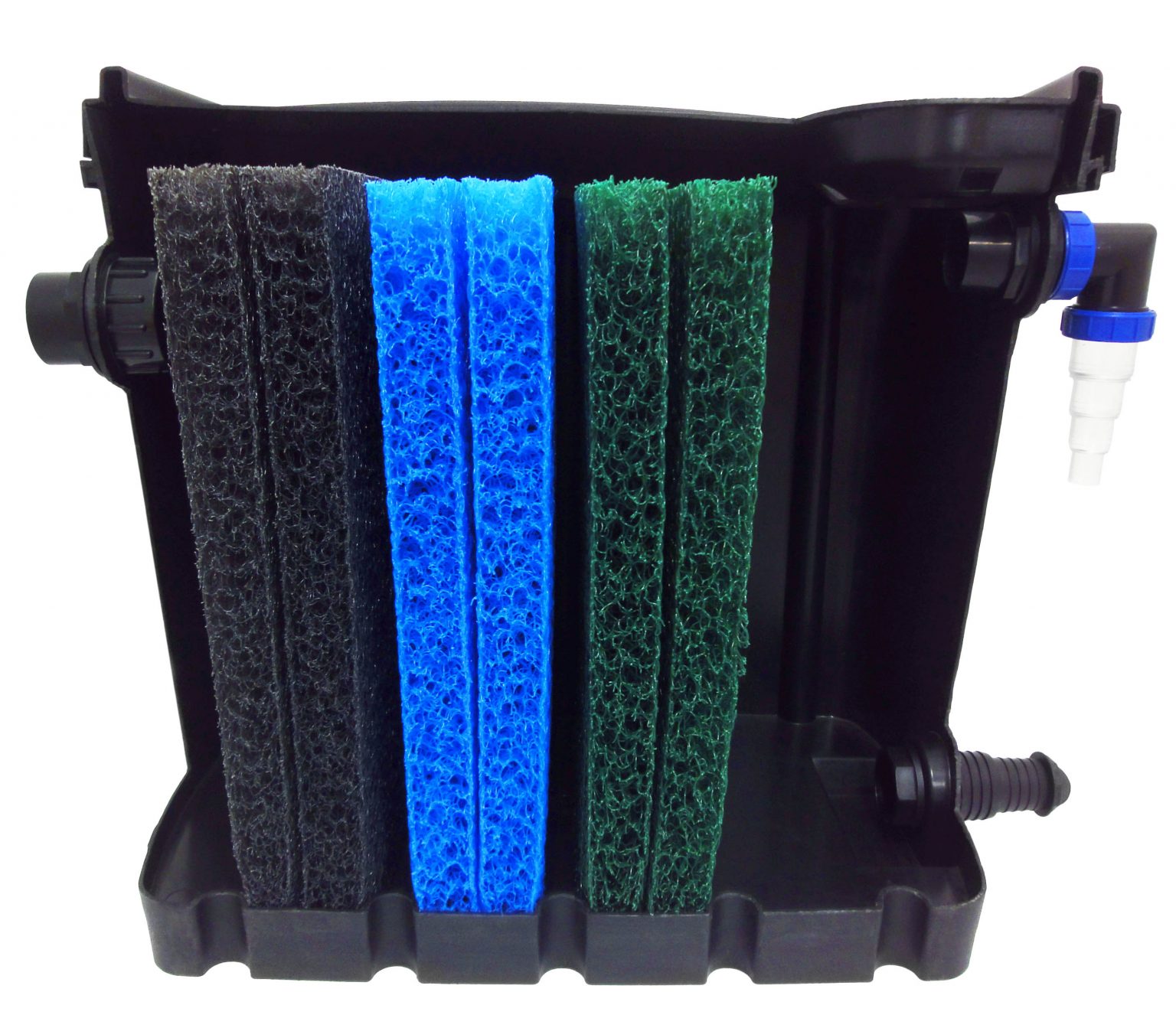

BioSteps Filter with 6 Matala filter pads for “Progressive Filtration”.
- 2 Green Matala Pads, 2 Blue Matala Pads, 2 Gray Matala Pads. Amazing filter capacity and improved settling of solids within the filter chamber.
- Flow rate 800 to 900 gals per hour. Gravity return to the pond.
- New “Swivel Inlet Fitting” with barb sizes 3/4″, 1″, 1-1/4″ and 1.5″
- Outlet fitting for 1.5″ or 2″ pipe connection or connection to optional Waterfall Spillway. The tank is an open flow “gravity return” to the pond.
- Bottom Drain fitting for backwash of dirty water. Includes drain plug. Capable of connecting to optional drain valve (not provided).
- Tank made from automotive grade plastic capable of cold and hot environments.

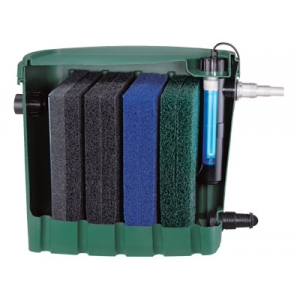

- Capable of adding the optional 16 watt EZClear UV Clarifier and or optional Waterfall Spillway.
Magna-Flow 1100 EZ Submersible Pump with EZBio 11 Plus Prefilter.
- MF-1100EZ Pump with maximum flow rate of 1100 gals per hour gives approximately 900 gals per hour at 3 feet of head. This is the ideal flow rate through the BioSteps filter.
- Includes a “Diverter Valve” to fine tune the flow through the BioSteps. The Diverter Valve also gives you the ability to divert flow to a jet or separate fountain.
- Includes the new EZBio 11 Plus Prefilter. 4 inch diameter x 8 inch long with green coarse mesh. Protects the pump from clogging but still allows dirt through to the BioSteps filter.
- 18 foot long 16 gauge electric cord with 3 prong grounded plug 110 volt.
Kink Free Hose
- 3/4 inch diameter x 25 feet long.
- Includes hose clamps for quick connection.

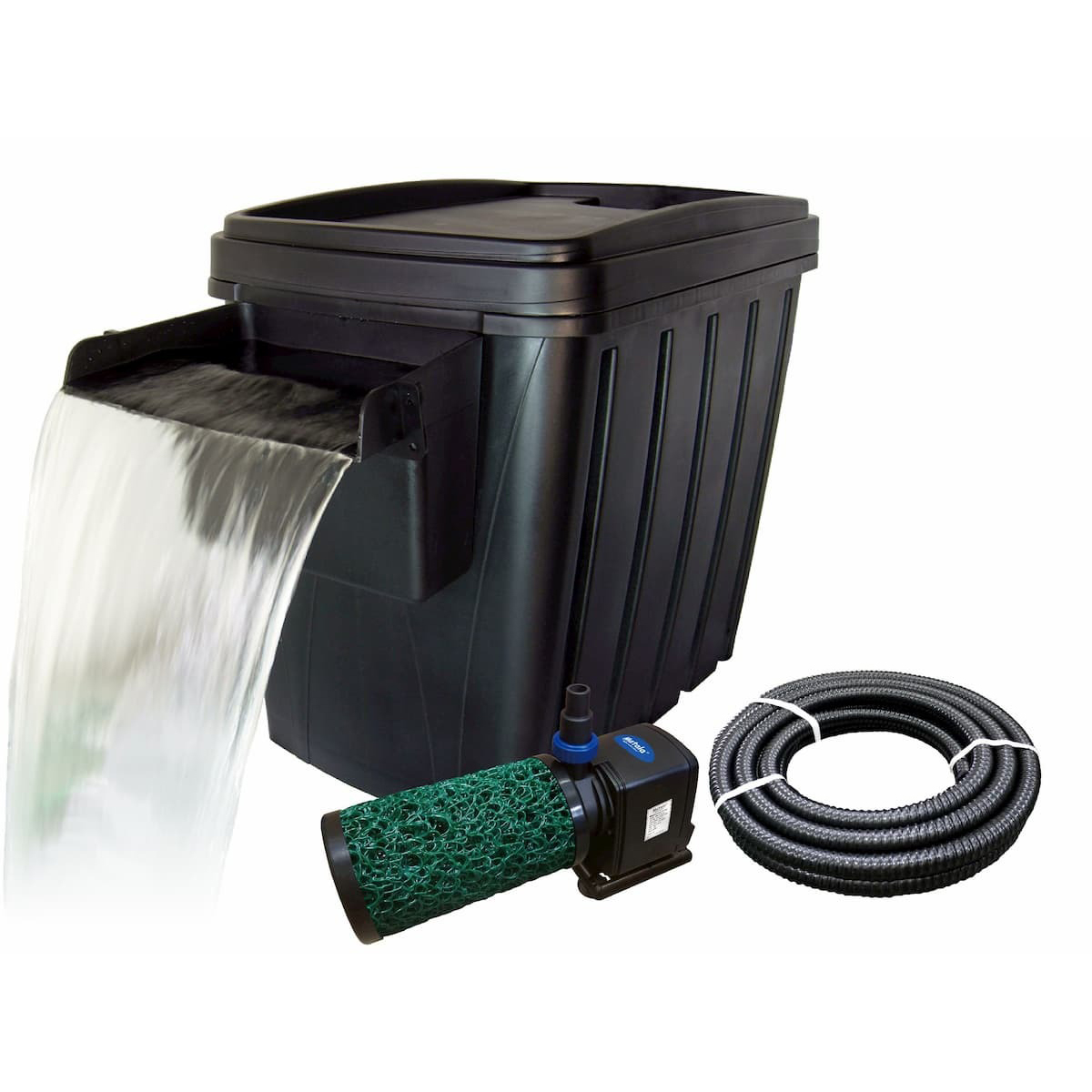

You also have the option to “add on” the optional 16 watt EZClear UV Clarifier or the optional Waterfall Spillway at a later time if you decide to upgrade after you install the Plus Kit on your pond.

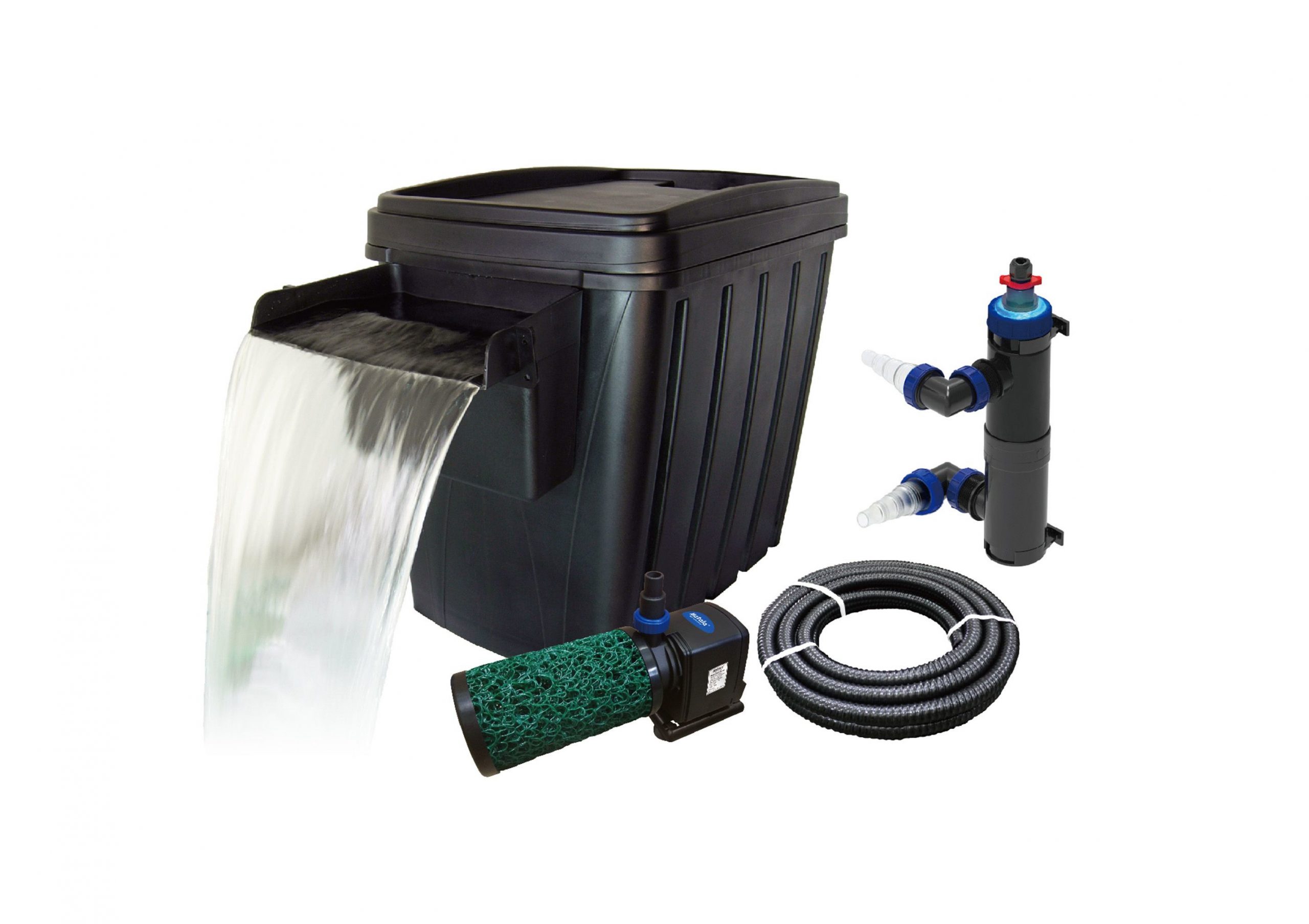

Select the kit that fits your pond best—whether you need UV clarifier to prevent blooms of algae and parasites and/or a waterfall feature to increase oxygen levels.
Click here to see the Biosteps Kit instructions manual.

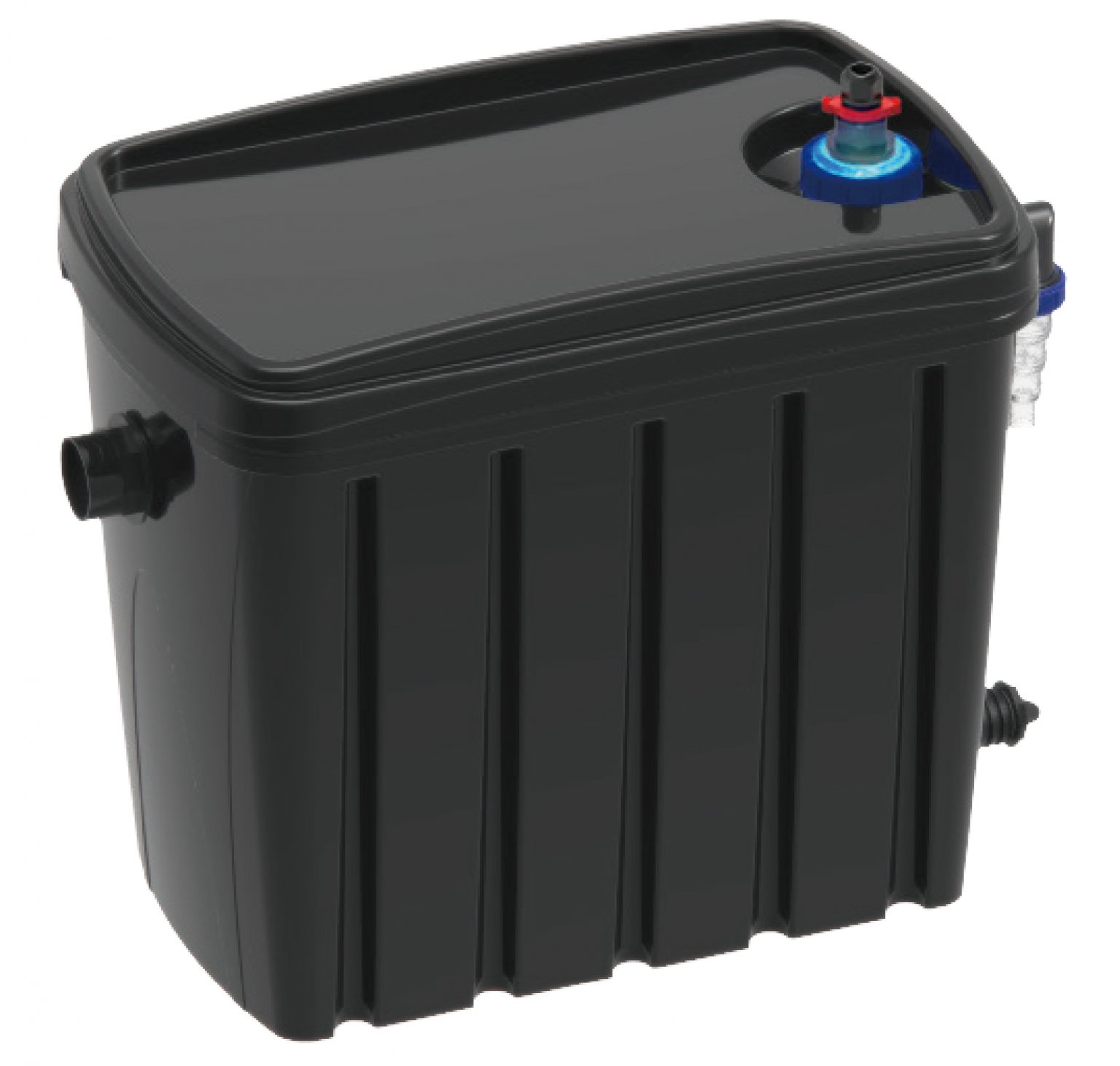

Click here to see how to Connect the EZClear 16 watt UV to the BioSteps Filter
Magna-Flow Pump (MF-1100EZ)
3/4″x25′ Kink-free tubing (includes 2 hose clamps)
